Lead Glass & Shielding Design is a technology geared radiation protection and compliance organisation with indepth software expertise. We are focused on providing solutions to organisations who depend on radiation compliance and accreditation to operate.
We are passionate about our products and our ability fulfill your needs. Our specific expertise is in radiation dosimetry, protection, training and regulatory compliance management and we pride ourselves on our knowledge and experience in the radiation community.
Our edge
We understand building, medical &physical aspects as well as clinical applications. Lead Glass & Shielding has medical physicists and engineers with over 25 years of history in x-ray, nuclear medicine shielding design, regulatory and clinical experience.
Our mission
To help you understand the principles of lead lining installations. When you undertake a project, we can assist in minimising your legal liabilities by ensuring that the lead integrity is continued throughout the x-ray room/s.
Economical
We buy in quantity so our pricing is competitive. For those who need builders with installation experience, we have the answer. Our contract builders will be able to offer a quote and complete the required work in a competent and timely manner.
Please Note: Whilst we are happy to provide consultation to builders you may engage, we cannot take any responsibility for any work they perform regarding the shielding installations.
Our products
Here are some of the products that we supply
For more than 100 years, lead Pb-207 has been the radiation shielding material of choice at medical facilities and research laboratories. This wide spread use comes with a health threatening cost. Lead is toxic to humans.

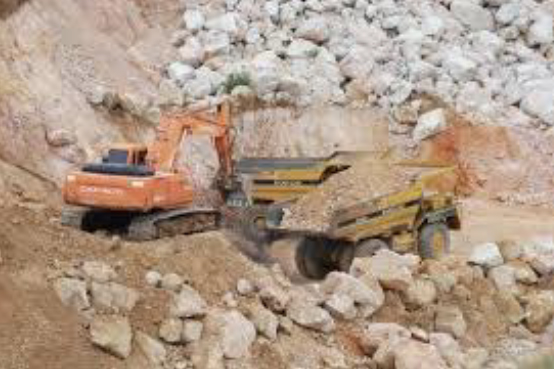

In response to this health and environmental threat, we are pleased to introduce you to a revolutionary radiation shielding products, produced from a natural mineral which is non-toxic and harmless to our environment:
Barite Shielding Board and Barite Shielding Bricks.
Barite shielding board (BSB01)
BSB01 is designed for medical x ray shielding from energy 60 to 200 KVP. It has various applications for wall and ceiling shielding of imaging exam rooms. It is also well suited for door shielding, movable barrier shielding and working partition shielding.

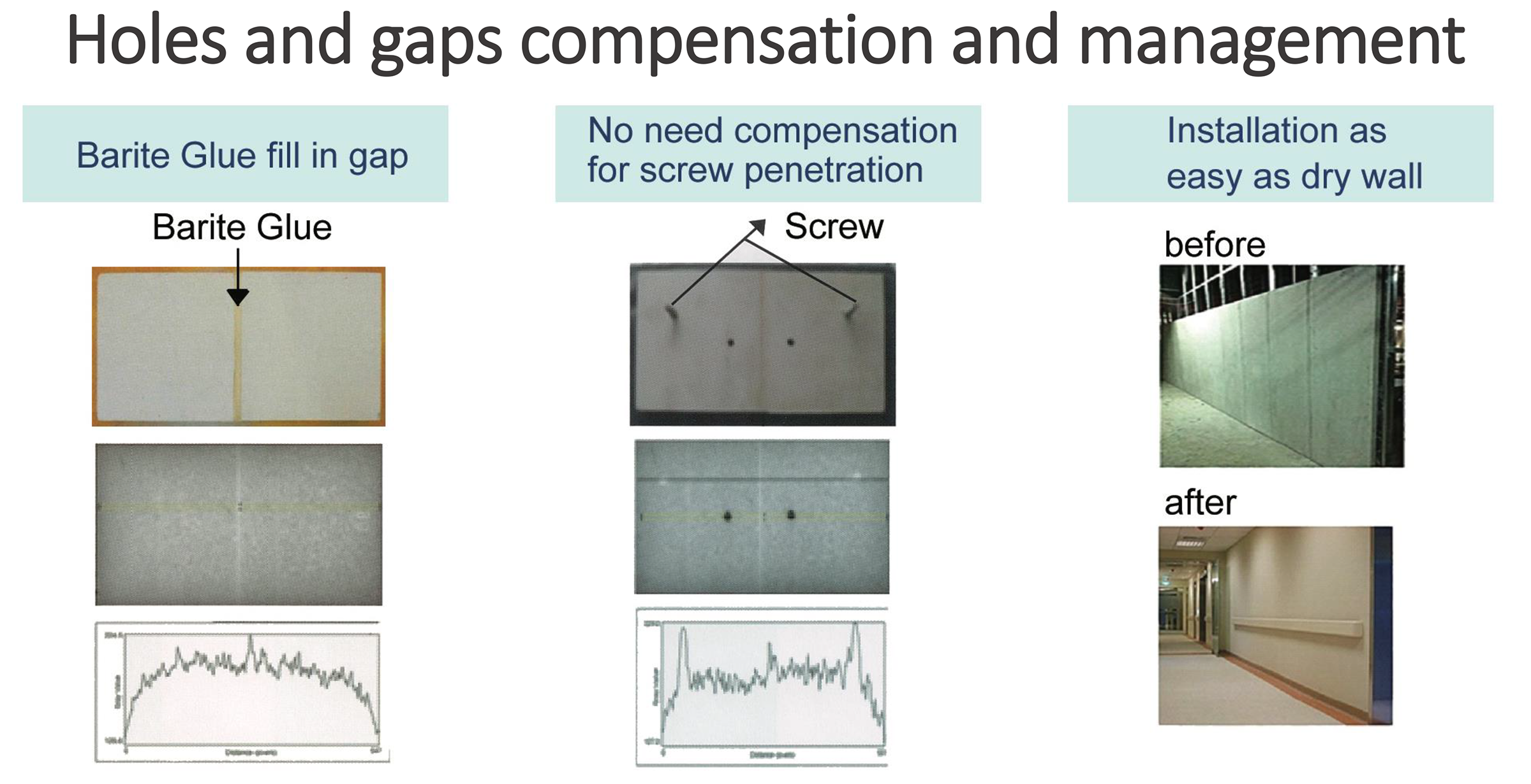

BSB is an aggregate of compressed Barium Sulphate, wood fibre and cement. The resulting board is fire resistant. Installation is as simple as dry wall. No additional shielding compensation is required for nailing or screwing. Gaps are filled with Barite Silicon to prevent radiation leakage.

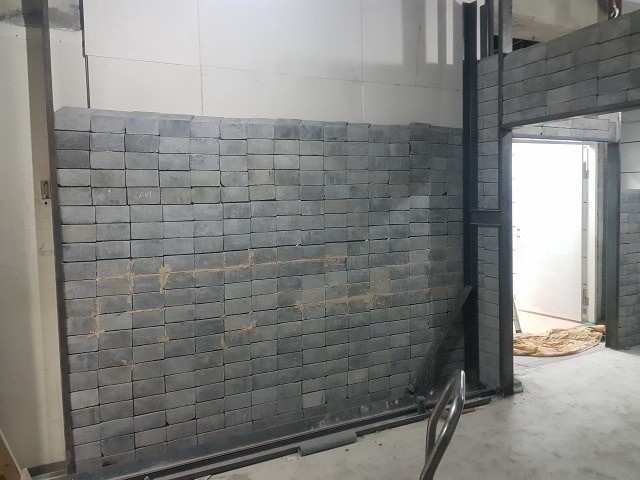

Barite Brick (BK10)

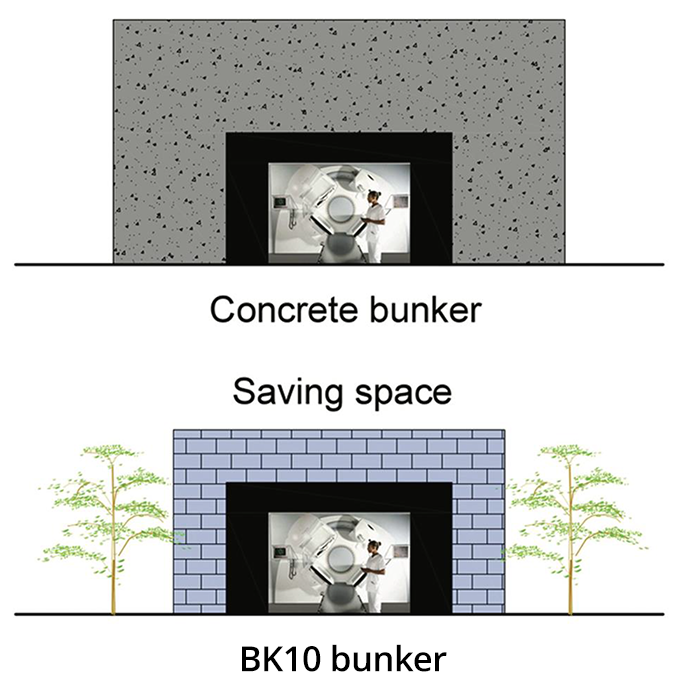

Barite Brick is designed for radiation shielding of high energy radiation and high activity protons, gamma rays and electron beams within medical and industrial facilities. It is ideal shielding for linear accelerators, radiation bunkers, proton therapy vaults and I-131 therapy wards. BK10 minimises space requirements and reduces cost for non-toxic shielding as a replacement for lead and concrete.
BK10 is a v-lock design to prevent radiation leakage. Installation is as easy as a standard brick wall.
The barite brick is profiled to be interlocking, giving full radiation barrier without leakage at the joins. A barite glue is applied to bond the bricks together.
BK10 Specification
Shielding performance of BK10 VS Lead at various isotopes and electron beams

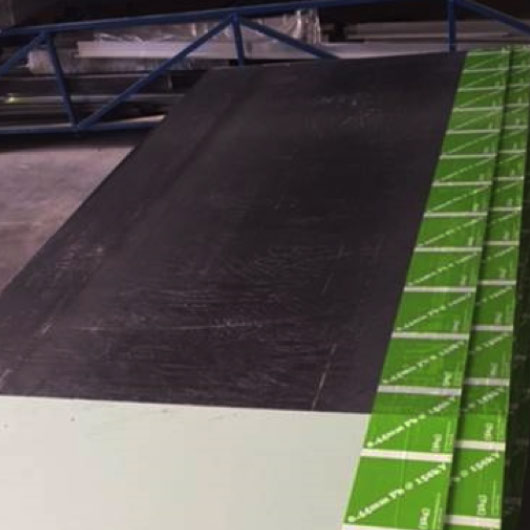

Lead Lined High Density Impact quality Gyprock
Specifications
-
Impactchek Gyprock laminated with 99.94% pure lead sheet in 5 , 10 , 15 , 20 , 25 & 35kg per metre squared
-
Colour coded with Lead rating to reduce risk of installing incorrect lead rating and voiding shielding report requirements.
Dimensions
Gyprock 1200mm Wide x 3000 mm High x 12.5 mm
Thick Lead lining 1220 mm Wide x 2100 mm High
Lead Rating Chart
Physical Thickness
Commercial Grades
0.44 mm
5 kg/m2
0.88 mm
10 kg/m2
1.32 mm
15 kg/m2
1.76 mm
20 kg/m2
2.20 mm
25 kg/m2
2.64 mm
30 kg/m2
3.08 mm
35 kg/m2
3.52 mm
40 kg/m2
3.96 mm
45 kg/m2

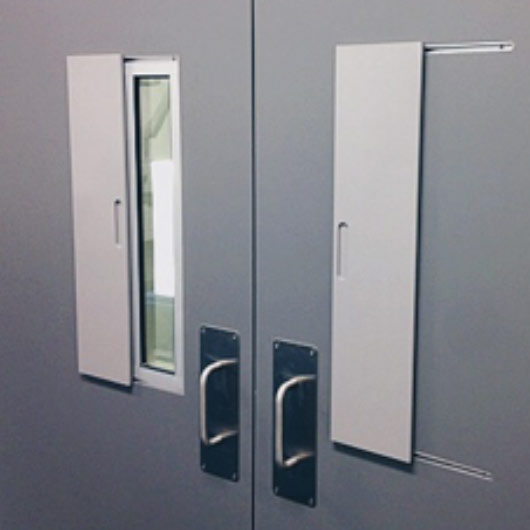

Lead Lined Door sets and Frames
Specifications
-
LeadLined Doors including zinc alloy lead lined door frames to suit
-
Thickness 40 mm + Lead thickness (dependant upon lead rating)
-
Optional door handles / push plates or kick panels
-
Ideal for radiation shielding, fire protection, impact resistance, hygiene control, sound reduction, air-pressure and privacy.
-
Optional Lead equivalent Viewing panel with 2.2 mm Pb equivalence or above for maximum protection
Door construction
-
Solid Core Hardwood primed ready for painting
-
Optional door prep and fitting of hardware (rebating, cut outs etc.)
-
Optional hinged / sliding laser protection covers for laser protection
Jamb construction
-
Primed Zinc Alloy, lead lined for lead integrity with walls when installed
-
Choice of fixing style- strap / new generation

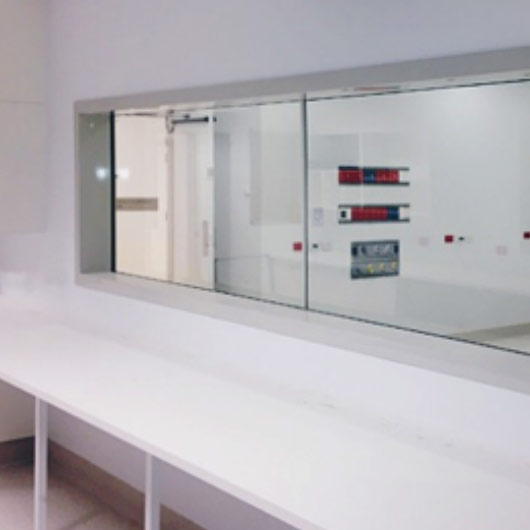

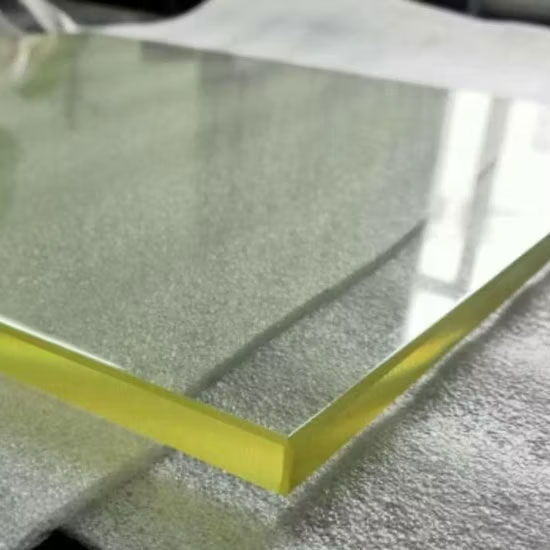

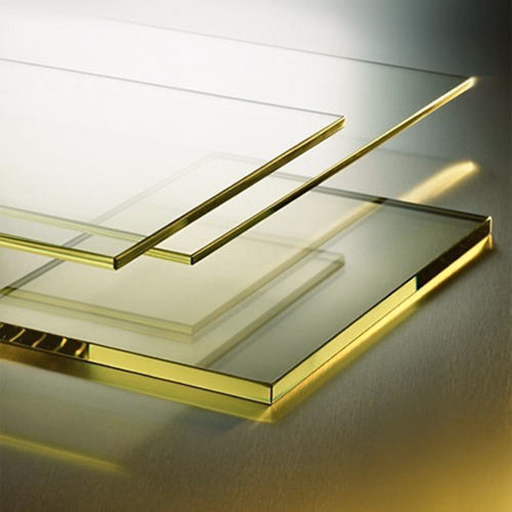

Lead Equivalent Viewing Panels and Frames
Specifications
-
2.2Pb Lead Equivalent Glass
-
Lead lined aluminium frame
-
Bevelled 45 degree edge included for control panels that have 90 degree protection wing
Example usage
-
CT scanning - procedure rooms
-
Mammography tomography - procedure rooms
-
General x-ray - procedure rooms
-
Endoscopy - procedure rooms
-
Interventional fluoroscopy
-
Pet scanner room
-
Update room
-
Pet hotlab
-
Spect CT scan room
-
Update room
Radiation Warning Signs – LED
Specifications
-
Universal LED emergency light including EZYFIT Bracket for both wall and ceiling mounting
-
Single and Double Sided Options
Turn Key Solutions
Using qualified tradespersons we can offer you a solution to your radiation shielding needs.
We can assist with design and carry out a full floor plan renovation including your radiation shielding needs.
Contact us for a no obligation quotation.
